Interactive Flat Panel

This interactive Flat Panels, advanced solutions designed to transform collaboration in classrooms, conference rooms, and public spaces.

Explore Product

Immersive Visual Experience

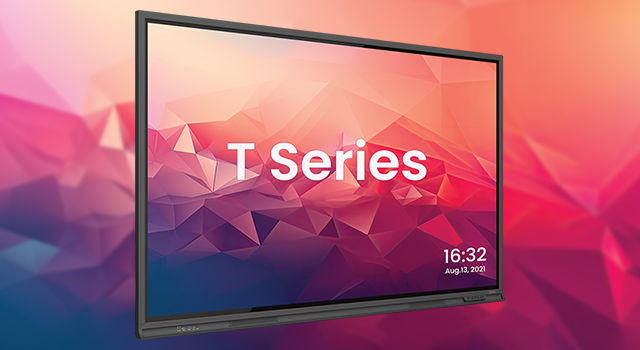

The T Series redefines digital interaction with its crystal-clear 4K display and a 178° wide viewing angle, ensuring every seat in the room has the perfect view.

Smart Android Experience

The T Series offers a secure and customizable platform for educators and professionals. Access a wide range of learning and productivity tools directly from the Android App Store.

Fast Connectivity & Easy Setup

You can start your class or meeting in seconds with the plug-and-play design. Just connect your laptop using the USB Type-C cable, and you’re ready to present.

Powerful Audio

Built-in 20W speakers give loud and clear sound, so everyone can hear easily without using extra speakers.

Enhanced Touch Experience

Enjoy smooth, responsive touch control with superior touch technology, delivering a natural writing and drawing experience.

Specifications

Display Parameters
Models: T65i | T75i | T86i | T65Ci | T75Ci | T86Ci | T98Ci
Display Ratio: 16:09
Brightness: 400cd/m2
Contrast Ratio: 4,000:1
Backlight Type: DLED
Viewing Angle: 178*(V)/178*(H)
Resolution: 3840 ( H) X 2160(V)
Audio Output Power: 8Ω/10W*2 or higher
Touch
Touch technology: Infrared Multi Touch Technology
Touch Point: 20 points touch
Drive: HID drive free
Writing surface material: 4mm Ag anti glare glass
Touch Screen Sensor Mode: Finger, writing pen, hand with gloves or other non transparent touch sensitive medium
Resolution: 32768 X 32768
Communication Port: USB 2.0
Min Recognition Dim: 2mm
Response Time: ≤5ms
Touch Accuracy: ± 1mm
Anti--interference: Incandescent lamp (220V, 100W), vertical distance 350mm above, The illumination intensity of the sun is up to 80000lux
Calibration: Calibration free
Touch Times: More than 60 million times in the same position
Touch Power supply Mode: USB 5.0V power supply
Android Specs
CPU / GPU: 8 core ARM Cortex-A55 / ARM Mali G52 MP 2
System Version: Android 14
Memory: DDR4 8GB
FLASH: 128GB
WIFI: 2.4G
Transmission screen WIFI: 5G
Bluetooth: 5.0
Back Port Input & OuT
LAN IN: 1
HDMI 2.0: 2
RS-232: 1
USB 3.0: 1
VGA IN: 1
Audio IN: 1
TF-card: 1
USB 2.0: 1
Earphone: 1
coaxial (RCA): 1
TOUCH OUT: 1
Front Port
USB3.0 2
HDMI 2.0 1
USB TOUCH 1
Type-C (5w) 1
